Motorcycle GPS Tracker – MVT100

DESCRIPTION

RECREATIONAL CRAFTS, VEHICLES & MOTORCYCLES

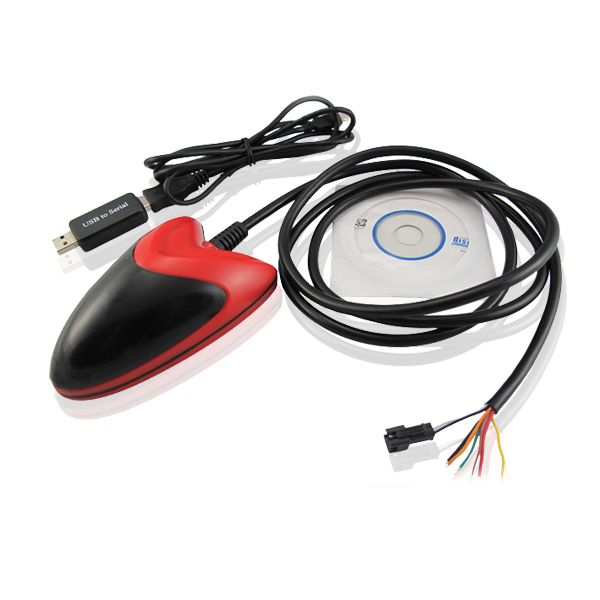

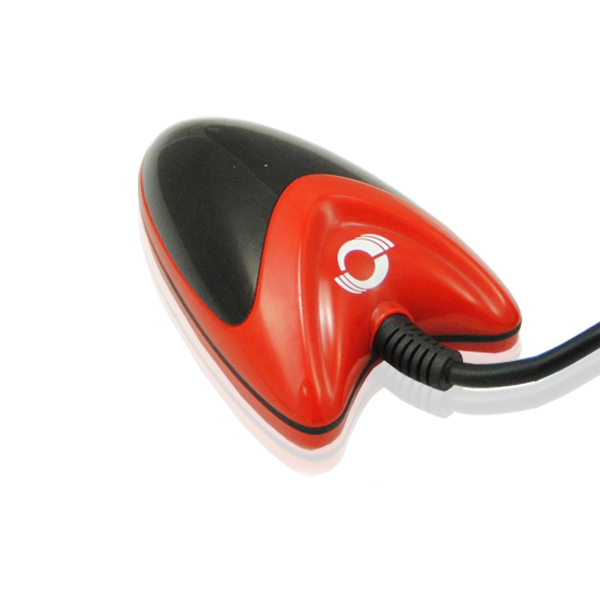

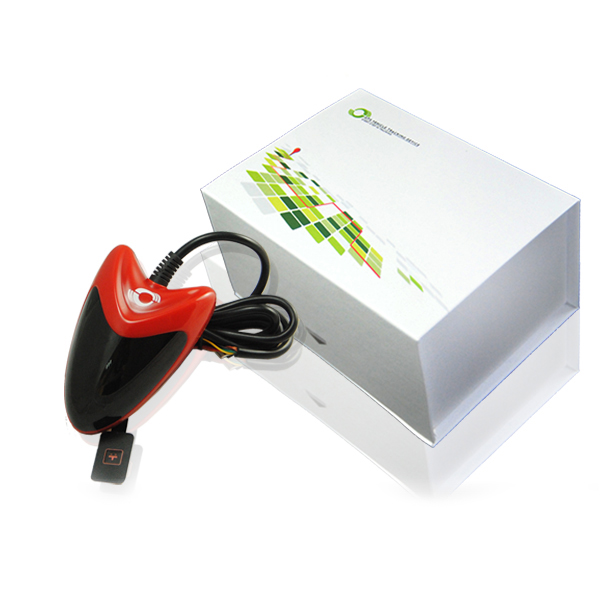

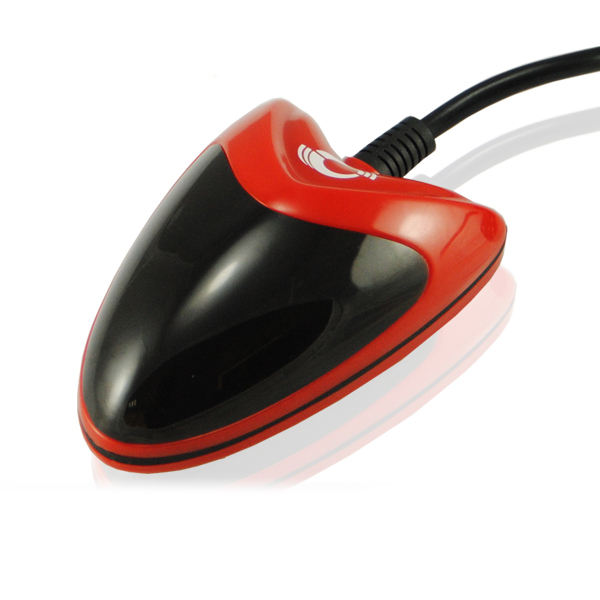

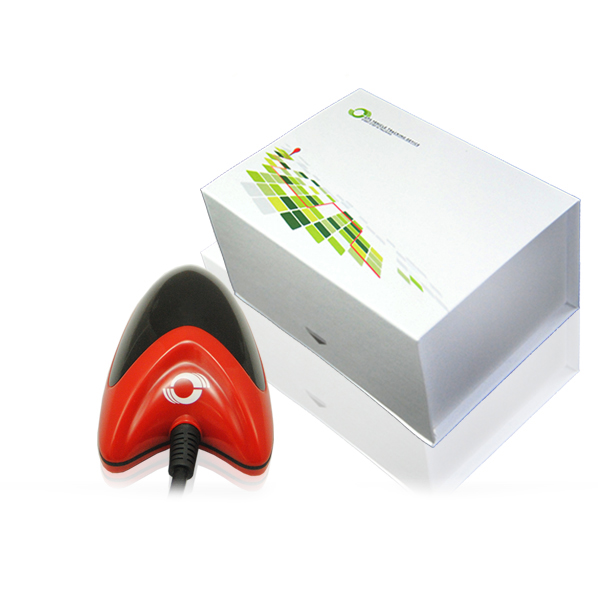

The MVT100 is a tracker designed specifically for vehicles like motorcycles, offering latest technology in terms of positioning functionality in combination to low consumption and IP66 tightness level. It is easy to install, just connect it to a power supply, while it provides alternatively to the end-user the ability to utilize the two digital and the one analog input to transmit data concerning the operation of the vehicle. In parallel it is provided via the tracker one output which could be employed for remote management functions adding a further option towards vehicle management.

MTV100-1 MTV100-2

MT100 INSTALLATION

Starting

With the tracker deactivated, use a screwdriver Phillips type, remove the screw at the back of the unit, to access the inside of the tracker.

Insert SIM

Be sure that the SIM card has the relative pin unlock number deactivated. Insert the SIM card on the slot and make sure that it has been mounted correctly. Activate the tracker and as soon as you are assured that it is activated place the cover of the unit back. Make sure that it has been mounted correctly and screw the screw without applying excessive pressure.

Charge the device

Connect the tracker at a 12V or 24V source via the black (GND) and red (+SUPPLY) wires at the back side of the unit. For proper battery management, let the tracker charge for at least three hours.

Device Parameterization

The tracker is partially parameterized. What remains in order to assure the proper operation of the device is the end user to declare the selected mobile telecommunications service provider via which the tracker will communicate with the server (cosmote, Vodafone, wind etc.). With the tracker activated, we conclude the process described above by transmitting a message SMS, that contains the SIM card number, inserted in the tracker.

The content of the message exactly as it should be sent is shown below:
0000,A21,1,digitrack.gr,1000, the APN of the provider, username if that exists, password if that exists

This message applies to all mobile telecommunication networks, differentiated only at the APN parameter (blue fonts) the value of which depends on the provider selected by the end-user. The APN value could be immediately provided by the mobile telecommunication service provider stores network. If there exists a username and password to connect, these are entered in the message at the positions with the red and green fonts.

Otherwise the message will have the form as below:
0000,A21,1,digitrack.gr,1000,internet,

(this is an example of a parameterization message with a mobile telecommunication service provider whose APN is “internet”, without username and password).

As soon as the process described above is concluded, the tracker is ready to operate. Be sure that all external antennas have been connected. What remains is to create a contact on the device the application DigiTrack is installed, taking into account that the IMEI of the tracker, which is affixed to its packaging, should be entered on the phone number of said contact.

Note: Buying the tracker is accompanied by free lifetime subscription of DigiTrack application. The end-user should declare the IMEI of the device the application DigiTrack is installed, when ordering the tracker at the UBILUS e-shop, to gain access to the mail server of the application.

PRODUCT FEATURES TABLE

mtv100_specs
Sku
mvt100
Description
Motorcycle GPS Tracker – MVT100
Product Options
#OptionPrice
1MVT100€225.00
Shipping
Shipping Rate: A
Order Motorcycle GPS Tracker – MVT100 MVT100 @ €225.00
